2004 Oldsmobile Alero fuse box diagrams

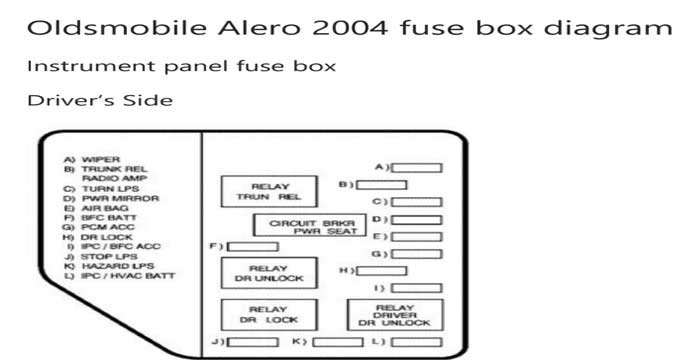

Oldsmobile Alero 2004 fuse box diagram Instrument panel fuse box Driver’s Side

Oldsmobile Alero use box instrument panel (driver’s side)

Fuse	Usage
WIPER	Windshield Wiper Motor, Washer Pump
TRUNK REL/RFA/RADIO AMP	Trunk Release Relay/Motor, Audio Amplifier/RFA
TURN LPS	Turn Signal Lamps
PWR MIRROR	Power Mirrors
AIR BAG	Air Bags
BFC BATT	Body Computer (BFC)
PCM ACC	Power Control Module (PCM)
DR LOCK	Door Lock Motors
IPC/BFC ACC	Cluster, Body Computer (BFC)
STOP LPS	Stop Lamps
HAZARD LPS	Hazard Lamps
IPC/HVAC BATT	HVAC Head, Cluster, Data Link Connector
Circuit Breaker	Usage
PWR SEAT	Power Seats
Relay	Usage
TRUNK REL	Trunk Relay
DR LOCK	Door Lock Relay
DRIVER DR UNLOCK	Driver’s Door Unlock Relay



Oldsmobile Alero fuse box instrument panel (passenger’s side)

Fuse	Usage
INST LPS	Interior Lamp Dimming
CRUISE SW LPS	Steering Wheel Cruise Control Switch Lamps
CRUISE SW	Steering Wheel Cruise Control Switches
HVAC BLOWER	HVAC Blower Motor
CRUISE	Cruise Control
FOG LPS	Fog Lamps
INT LPS	Interior Courtesy Lamps
RADIO BATT	Radio, XMTM Satellite Radio/DAB
SUNROOF	Power Sunroof
Circuit Breaker	Usage
PWR WNDW	Power Windows
Circuit Breaker	Usage
FOG LPS	Fog Lamps



Oldsmobile Alero fuse box engine compartment

Fuse Usage Maxi-Fuses

1. Ignition Switch
2. Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
3. Left Electrical Center-Stop Lamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
4. Anti-Lock Brakes
5. Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release, Audio Amplifier, Remote Keyless Entry
6. Not Used
7. Ignition Switch
8. Cooling Fan #1
9. Rear Defog
10. Not Used
11. Starter (V6 only)
12. Cooling Fan #1
13. HVAC Blower (Climate Control)
14. Cooling Fan #2
15. Cooling Fan
16. Air Conditioning Compressor
17. Not Used
18. Fuel Pump
19. Automatic Headlamp System
20. Automatic Headlamp System
21. Horn
22. Daytime Running Lamps (DRL)
23. Spare Fuse Holder
24. Spare Fuse Holder
25. Spare Fuse Holder
26. Spare Fuse Holder
27. Spare Fuse Holder
28. Spare Fuse Holder
29. Spare Fuse Holder
30. Spare Fuse Holder
31. Spare Fuse Holder
32. Spare Fuse Holder
33. Rear Defog
34. Accessory Power Outlets, Cigarette Lighter
35. Generator
36. Not Used
37. Air Conditioning Compressor, Body Function Control Module
38. Automatic Transaxle
39. Powertrain Control Module (PCM)
40. Anti-Lock Brakes (ABS)
41. Ignition System
42. Back-Up Lamps, Brake Transaxle Shift Interlock
43. Horn
44. PCM
45. Parking Lamps
46. Climate Control System, Air Conditioning
47. Canister Vent Valve, Exhaust Oxygen Sensors
48. Fuel Pump, Injectors
49. Not Used
50. Right Headlamp
51. Left Headlamp
52. Cooling Fan #2
53. HVAC Blower (Climate Control)
54. Crank (V6 only)
55. Cooling Fan #2 Ground
56. Fuse Puller for Mini Fuses
57. Not Used
