1993 Oldsmobile Achieva fuse box diagram

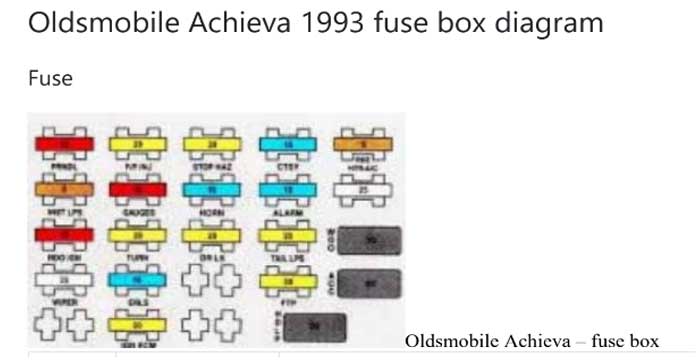

Oldsmobile Achieva 1993 fuse box diagram

Oldsmobile Achieva fuse box Table

Fuse	Ampere rating [A]	Circuitry
PRNDL	10	Back-up Lights, Electronic PRNDL (automatic transaxle
F/P INJ	20	Fuel Pump, Fuel Injectors
STOP HAZ	20	Turn/Hazard/Stop Lights, Anti-Lock Brakes (ABS), Brake Transaxle Shift Interlock (BTSI
CTSY	15	Power Door Locks, Power Mirrors, Cigar Lighter
RKE	5	Remote Keyless Entry
INST LPS	5	Instrument Panel Lights
GAUGES	10	Rear Window Defogger Relay, Chime, Gages, ABS, BTSI, Daytime Running Lights (DRL) (Canada), RKE
HORN	15	Horn
ALARM	15	Chime, Interior Lights, Passive Restraints, Radio/Clock Memory, RKE
HTR-A/C	15	Heater, Air Conditioning, ABS, DRL (Canada), Engine Block Heater, Ride Control
RDO IGN	10	Radio, Cruise Control, Variable Effort Steering
TURN	20	Turn Signals
DR LK	20	Power Door Locks
TAIL LPS	20	Exterior Lights, Fog Lights, DRL (Canada)
WDO	30	Power Windows (Circuit Breaker)
WIPER	25	Windshield WiperdWasher
ERLS	15	Engine Controls, Starter and Charging System BLANK
ACC	30	Power Antenna, Power Seats, Rear Window Defogger (Circuit Breaker)
IGN ECM	20	Engine Control Module, Ignition System
